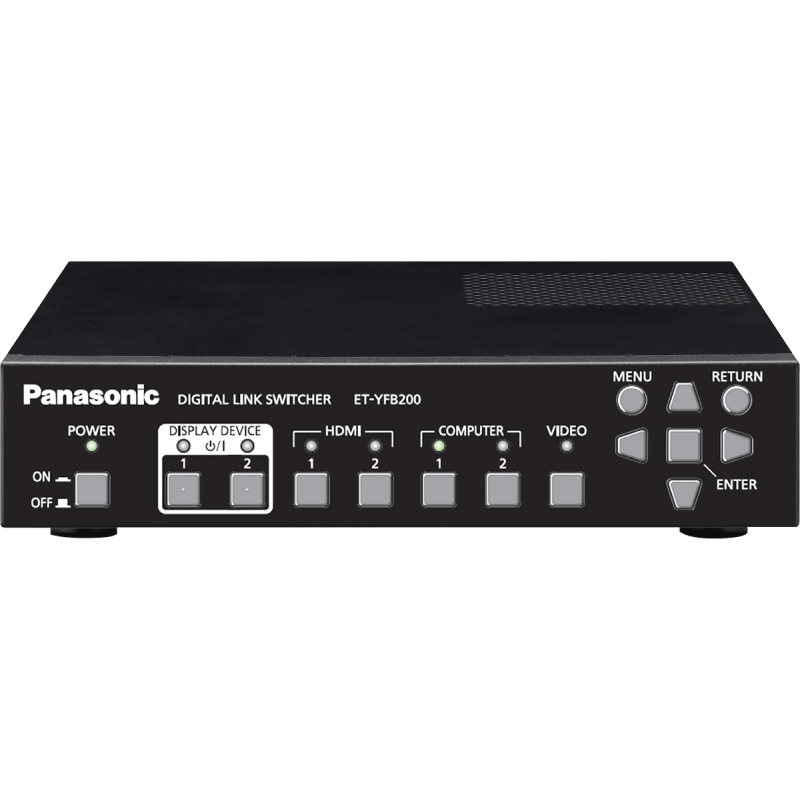

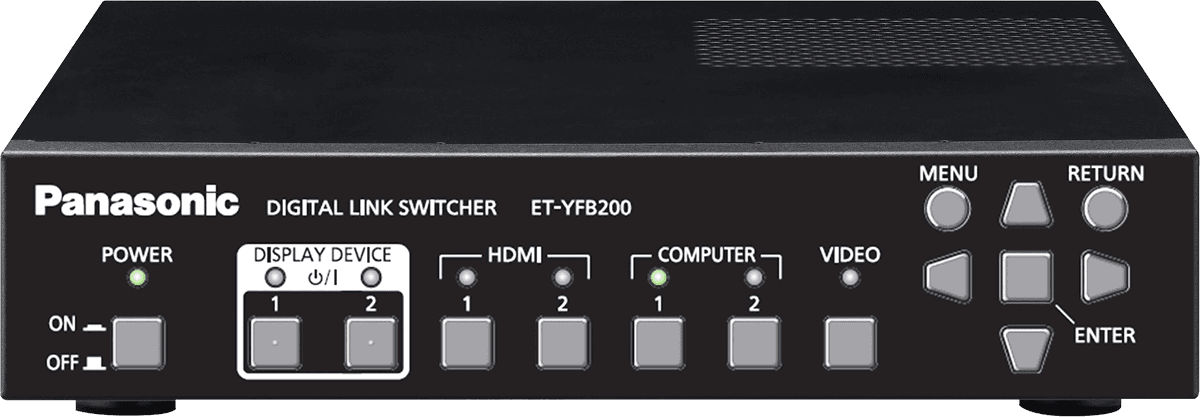

ET-YFB200G Panasonic
Précédent
Suivant
Digital Link - Switch Digital Link.
1 759,00 €
TTC
10x
12x
24x
...
86.68 €
/
mois
En stock internet
3x sans frais
dès 149€
Garantie de 3ans minimum
Satisfait ou remboursé
Product specifications
| Power supply | DC 16 V (DC input terminal) | |
| Power consumption (use with supplied AC adaptor) |
32 W [0.15 W with power off] (including power consumption of AC adaptor) |
|
| AC adapter | Input | 100 V–240 V AC (1.5 A–0.8 A) |
| Output | DC 16 V, 3.75 A | |

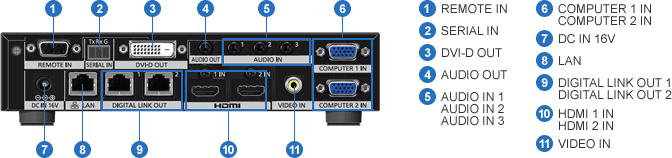

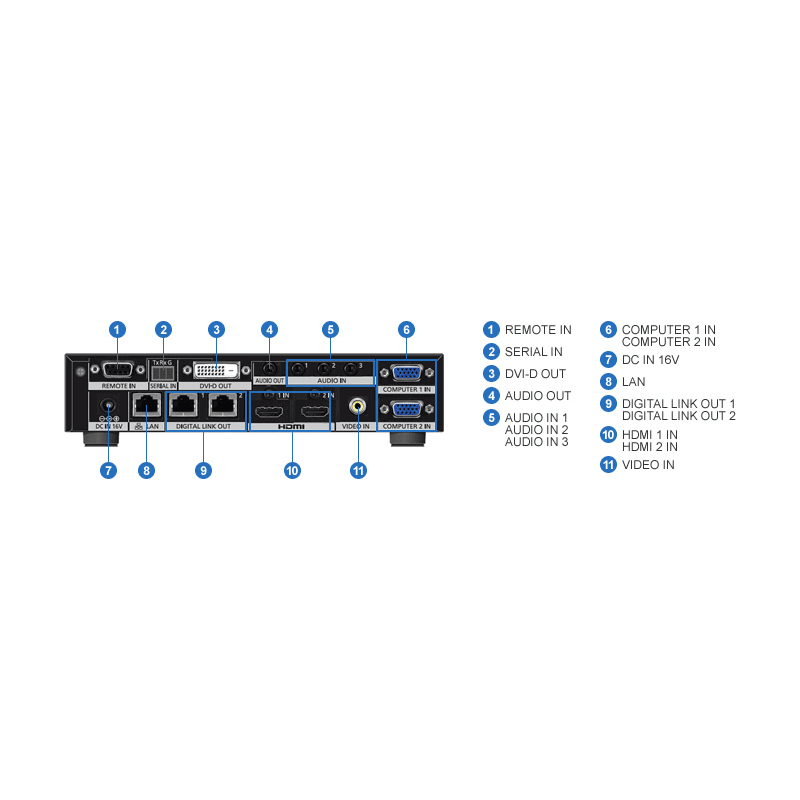

| Terminals | COMPUTER 1 IN | D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 2)*1 |
| COMPUTER 2 IN | D-sub HD 15-pin (female) x 1 | |
| VIDEO IN | Pin jack x 1 (composite video) | |
| AUDIO IN 1 | M3 (L-R) x 1 | |
| AUDIO IN 2 | M3 (L-R) x 1 | |
| AUDIO IN 3 | M3 (L-R) x 1 | |
| DIGITAL LINK OUT 1 | RJ-45 x 1 for DIGITAL LINK connection (video, audio and control signals), HDBaseT™ compliant |
|
| DIGITAL LINK OUT 2 | RJ-45 x 1 for DIGITAL LINK connection (video, audio and control signals), HDBaseT™ compliant |
|
| DVI-D OUT | DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) |
|
| SERIAL IN | 3-pin 3.5 mm detachable terminal block for external control (RS-232C compliant) |
|
| AUDIO OUT | M3 (L-R) x 1 (variable) | |
| REMOTE IN | D-sub 9-pin (female) x 1 for external control (parallel) | |
| LAN IN | RJ-45 x 1 for network connection, 10Base-T/100Base-TX, compatible with PJLink | |
| HDMI 1 IN | HDMI 19-pin x 2 (Deep Color, compatible with HDCP), audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
|
| HDMI 2 IN | HDMI 19-pin x 2 (Deep Color, compatible with HDCP), audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
|
| Dimensions (W x H x D) | 210 x 44 x 250 mm (8 9/32″ x 1 23/32″ x 9 27/32″) (not including protruding parts) | |
| Weight | Approximately 1.3 kg (2.87 lbs)*2 | |
| Operating environment | Operating temperature: 0-40 °C (32-104 °F)*3, operating humidity: 20-80 % (no condensation) |
|
| Supplied accessories | AC adaptor x 1, power cords (2 m) x 3, AC power cord holder x 1, AC power cord holder screw x 1, mounting brackets for rack installation x 2, countersunk screws x 6, legs x 4, screws for installing legs x 4, plug for 3-pin 3.5 mm detachable terminal block x 1 |
|
